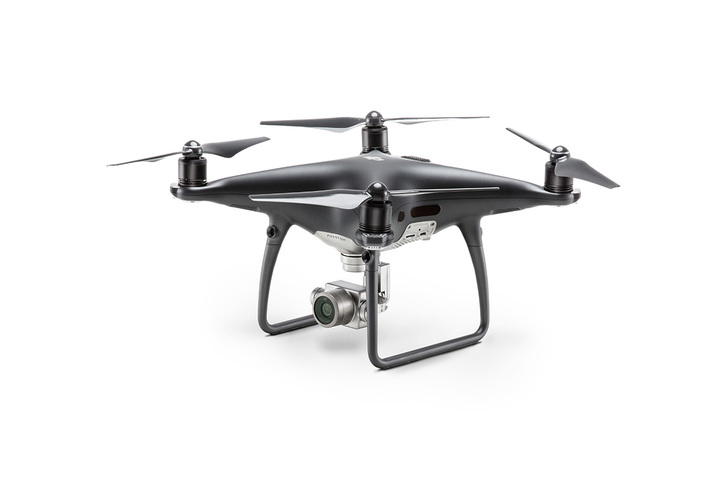

DJI PHANTOM 4 PRO+ PLUS DRONE 4K 20MP + 5.5″ DISPLAY. BLACK OBSIDIAN EDITION

Sold on eBay


Description

   DJI Innovations

DJI PHANTOM 4 PRO+
(with 5.five” Show)
OBSIDIAN EDITION


IN STOCK !!! LIMITED QUANTITY














SPECIFICATION:

AIRCRAFT
Weight (Battery & Propellers Included) 1388 g
Diagonal Size (Propellers Excluded) 350 mm
Max Ascent Speed S-mode: 6 m/s; P-mode: 5 m/s
Max Descent Speed S-mode: 4 m/s; P-mode: 3 m/s
Max Speed 45 mph (seventy two kph) (S-mode); 36 mph (fifty eight kph) (A-mode); 31 mph (50 kph) (P-mode)
Max Tilt Angle 42° (S-mode); 35° (A-mode); 25° (P-mode)
Max Angular Speed 250°/s (S-mode); a hundred and fifty°/s (A-mode)
Max Service Ceiling Above Sea Level 19685 ft (6000 m)
Max Flight Time Approx. 30 minutes
Operating Temperature 32° to 104° F ( zero° to forty° C)
Satellite Positioning Systems GPS/GLONASS
GPS Hover Accuracy Range Vertical: ±zero.1 m (With Vision Positioning); ±zero.5 m (With GPS Positioning)
Horizontal: ±zero.3 m (With Vision Positioning); ±1.5 m (With GPS Positioning)
VISION SYSTEM
Velocity Range ≤31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range 0 – 33 ft (zero – 10 m)
Operating Range 0 – 33 ft (zero – 10 m)
Obstacle Sensory Range 2 – 98 ft (zero.7 – 30 m)
FOV 60°(Horizontal), ±fifty four°(Vertical)
Detection Frequency 10Hz
Operating Environment Surfaces with transparent patterns and ok lighting fixtures (> 15 lux)
CAMERA
Sensor 1″ CMOS; Effective pixels: 20M
Lens FOV (Field of View) eighty four°, 8.8 mm / 24 mm (35 mm format identical),
f/2.8 – f/eleven.
auto center of attention at 1 m – ∞
ISO Range Video: 100 – 3200 (Auto); 100 – 6400 (Manual)
Photo: 100 – 3200 (Auto); one hundred- 12800 (Manual)
Mechanical Shutter 8 – 1/2000 s
Electronic Shutter 1/2000 – 1/8000 s
Max Symbol Size 3:2 Side Ratio: 5472 × 3648
4:3 Side Ratio: 4864 × 3648
16:nine Side Ratio: 5472 × 3078
PIV Symbol Size ・4096 × 2160 (4096 × 2160 24/25/30/forty eight/50p)
3840 × 2160 (3840 × 2160 24/25/30/forty eight/50/60p)
2720 × 1530 (2720 × 1530 24/25/30/forty eight/50/60p)
1920 × 1080 (1920 × 1080 24/25/30/forty eight/50/60/120p)
1280 × 720 (1280 × 720 24/25/30/forty eight/50/60/120p)
Still Photography Modes Single Shot
Burst Shooting: 3/five/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/five bracketed
frames at 0.7EV Bias
Interval: 2/3/five/7/10/15/30/60 s
Video Recording Modes H.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2720×1530 forty eight/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
1920×1080 forty eight/50/60p @65Mbps
1920×1080 120p @100Mbps
HD: 1280×720 24/25/30p @25Mbps
1280×720 forty eight/50/60p @35Mbps
1280×720 120p @60Mbps
H.264
C4K:4096×2160 24/25/30/forty eight/50/60p @100Mbps
4K:3840×2160 24/25/30/forty eight/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2720×1530 forty eight/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
1920×1080 forty eight/50/60 @80Mbps
1920×1080 120p @100Mbps
HD: 1280×720 24/25/30p @30Mbps
1280×720 forty eight/50/60p @45Mbps
1280×720 120p @80Mbps
Video Storage Bitrate 100 Mbps
Supported File Systems FAT32 (≤ 32 GB); exFAT (> 32 GB)
Photo JPEG, DNG (RAW), JPEG + DNG
Video MP4/MOV (AVC/H.264;HEVC/H.265)
Supported SD Cards Micro SD, Max Capability: 128GB.
Write speed ≥15MB/s, elegance 10 or UHS-1 rating required
Operating Temperature 32° to 104° F (zero° to forty° C)
CHARGER
Voltage 17.4 V
Rated Power 100 W
GIMBAL
Stabilization 3-axis (pitch, roll, yaw)
Controllable Range Pitch: -ninety° to +30°
Max Controllable Angular Speed Pitch: ninety°/s
Angular Keep watch over Accuracy ±zero.01°
INFRARED SENSING SYSTEM
Obstacle Sensory Range 0.6 – 23 ft (zero.2 – 7 m)
FOV 70° (Horizontal), ±10° (Vertical)
Detection Frequency 10 Hz
Operating Environment Surface with diffuse mirrored image subject material,
and reflectivity > 8% (such as wall, trees, humans, and so on.)
REMOTE CONTROLLER
Operating Frequency 2.400 – 2.483 GHz and 5.725 – 5.825 GHz
Max Transmission Distance 2.400 GHz – 2.483 GHz(Unobstruoted, freed from interference)
FCC: 4.3mi (7km);
CE: 2.2mi (3.5km);
SRRC: 2.5mi (four km)
5.725 GHz – 5.825 GHz(Unobstruoted, freed from interference)
FCC: 4.3mi (7km);
CE: 1.2mi (2 km);
SRRC: 2.5mi (four km)
Operating Temperature 32° to 104° F (zero° to forty° C)
Battery 6000mAh LiPo 2S
Transmitter Power (EIRP) 2.400 GHz – 2.483 GHz
FCC: 26 dBm; CE: 17 dBm; SRRC: 20 dBm
5.725 GHz – 5.825 GHz
FCC: 28 dBm; CE: 14 dBm; SRRC: 20 dBm
Operating Voltage 1.2 A @7.4 V
Video Output Port GL300E: HDMI,USB
GL300F: USB
Mobile Device Holder GL300E:Built-in Show device (five.5 inch screen, 1920×1080,
1000 cd/m2, Android system, 4G RAM+16G ROM)
GL300F:Tablets and sensible phones
INTELLIGENT FLIGHT BATTERY (PH4-5870MAH-15.2V)
Capacity 5870 mAh
Voltage 15.2 V
Battery Type LiPo 4S
Energy 89.2 Wh
Net Weight 468 g
Charging Temperature Range 14° to 104° F (-10° to forty° C)
Max Charging Power 100 W
